TLG aluminum cable carrier is the only solution for large steel cabte carriers. Supporting plates can be customized according to customers' requirements. strong structure makes it possible for The of supporting plate reach 1200mm.
TLG separators with plastic can function in designated positions.Please refer to the following drawing.
Please choose such economic device if there are multiple cable specifications. There are multiple advantages for TLG potyfoam supporting plate,wtilch provides the best protection for the cables, as well as in high
speed travels. Numbers of famous automobile manufacturers have been using this device for recent years, so that the cables are property arranged in thd middle position of the polyfoam.
TLG steel cable carriers take the new enclosed aluminum alloy covering plate-Silver Star as the cover
The newty developed Silver Star covenng plates m TLG stddi cabte carrier, are made of aluminum aJloy. The models are TLG20. TLG30.
TLG40and TLG50.

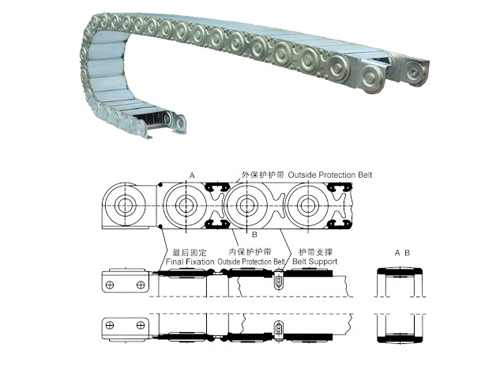

Elastic steel belt can be Fixed inside or outside the cable carriers to protect the cables and keep it clean Reside, which proves most reiiabte.
Features of Silver Star Covering Plates:
Elegant appearance.
The structure has been tested for more than 15years.
It can provide extremely stable and firm protection for cables.
The width can be as lonh as 1000mm.
Silver Star covering plate can be installed any time upon customers' request.

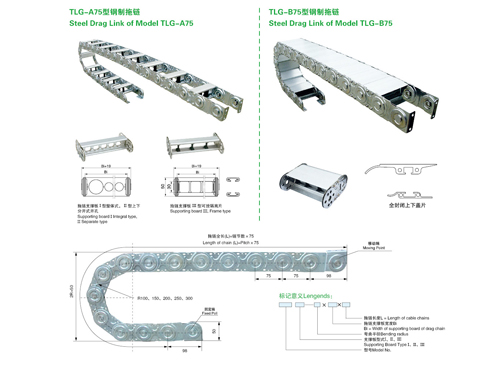

TLG Series Full Closed-loop Type Steel Cable ChainsSpecifications
| Type | Bending radius | Pitch | 內(nèi)高 | c | d | e | f | g | h | k | When non-support roller is allowed | weight | |
| Length | Load | ||||||||||||
| TLG-A75 | 100/150/200/250/300 | 75 | 31 | 50 | 8 | 4 | 30 | 12 | 9 | 15 | 2003/2/2 | 20/30/30 | 4.90/4.80/5.50 |
| TLG-A100 | 150/200/250/300/400 | 100 | 49 | 75 | 10 | 4 | 50 | 17 | 11 | 21 | 2004/3/3 | 25/40/40 | 9.10/9.10/10.00 |
| TLG-A125 | 200/250/300/400/500 | 125 | 68 | 100 | 14 | 4 | 70 | 22 | 13 | 28 | 2006/4/4 | 30/50/50 | 18.10/18.10/19.30 |
| TLG-A175 | 250/300/400/500/600 | 175 | 118 | 150 | 14 | 8 | 115 | 26 | 13 | 32 | 10/8 | 10/30 | 25.00 |
